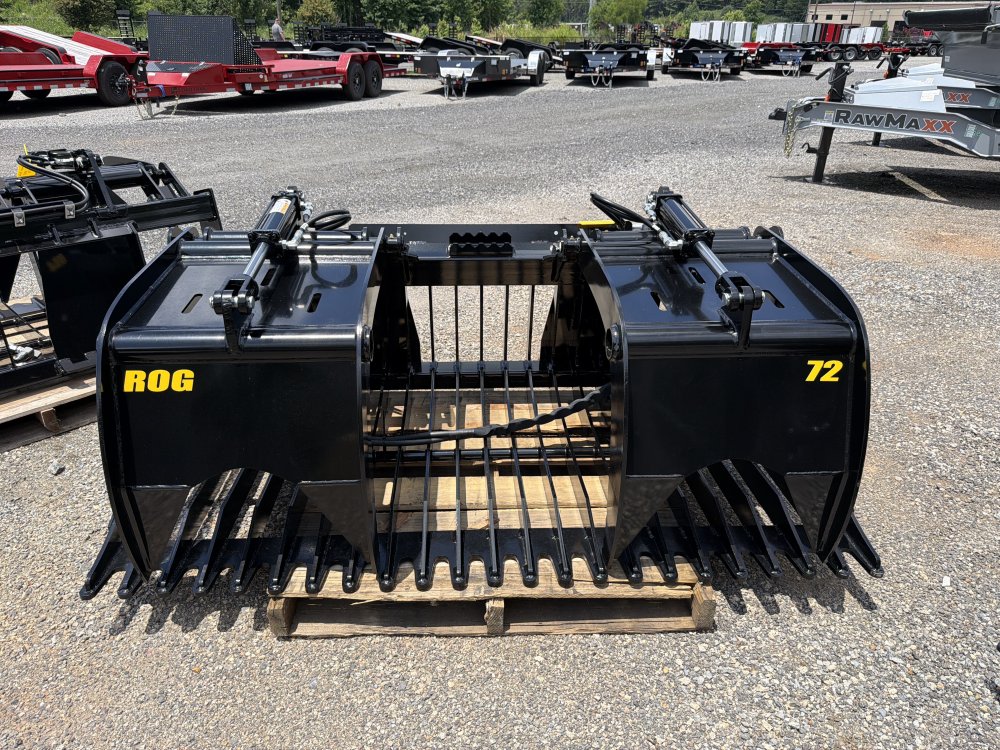

ROG-72 Rock Grapple Bucket-Open Sides with Bolt on Sides (Universal Quick Attach Mount, Hoses & Couplers)

Key Specs:

• Opening Width: 45”
• Twin-Cylinder Grapples
• 1/2″ serrated cut edge
• Universal Skid Steer Mount Plate
• 2-7/8” opening between the tines
• 2 Year Warranty

  Weight 965 lbs

Product is built with large 4×4 upper square tubing, and heavy-duty 3/8 plate steel throughout the entire bucket to truly add life and economic viability of the product. Heavy-duty tines are spaced 3.25” apart so larger items will stay in the bucket while loose dirt or dust falls through. Two heavy-duty independent grapples powered by two Maxim 2500 psi cylinders have a massive 45″ opening and are completely removable in less than 10 minutes to make sure you can handle any job

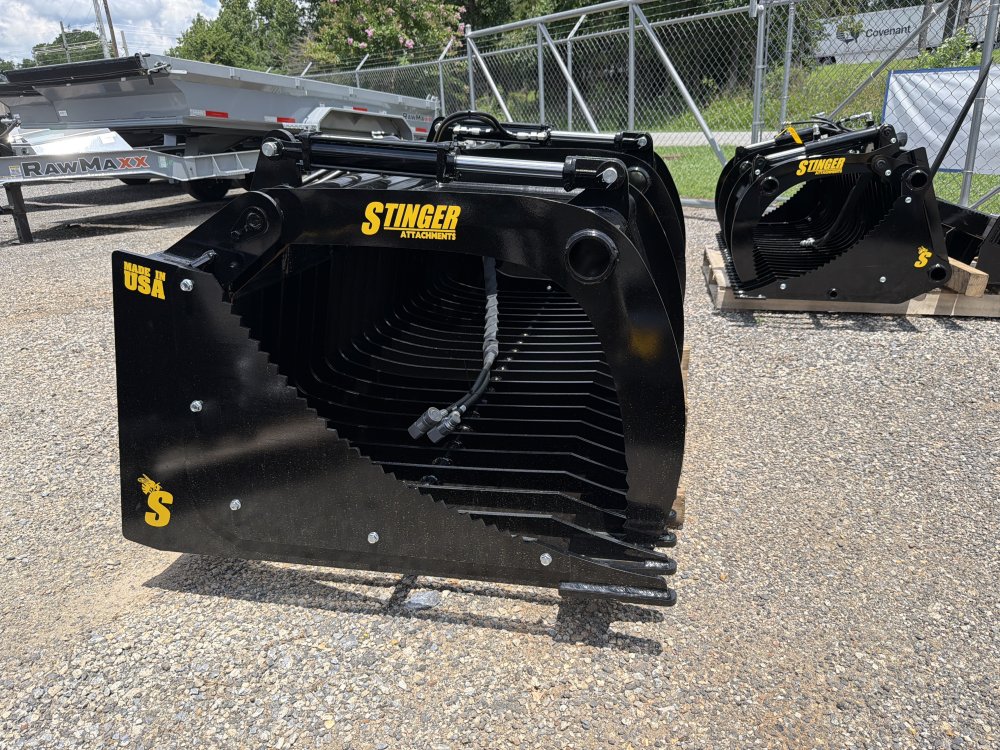

Bucket

Structural steel materials and reinforcement on the top and bottom let this rock grapple’s bucket hold the toughest materials. The universal mounting plate fits most popular skid steer makes, including Bobcat, John Deere and Kubota. Ask us about custom mounting options or leaving the attachment clear for your own mounting plate.

• Grade 50 steel (3/8″ Tines)
• 4″x 4″x 1/4″ top tubing
• 3″x 3″x 1/4″ bottom tubing
• 1/2″ serrated cut edge
• 2-7/8″ opening between tines
• Universal skid steer mount plate
• (Call for other mounting options)

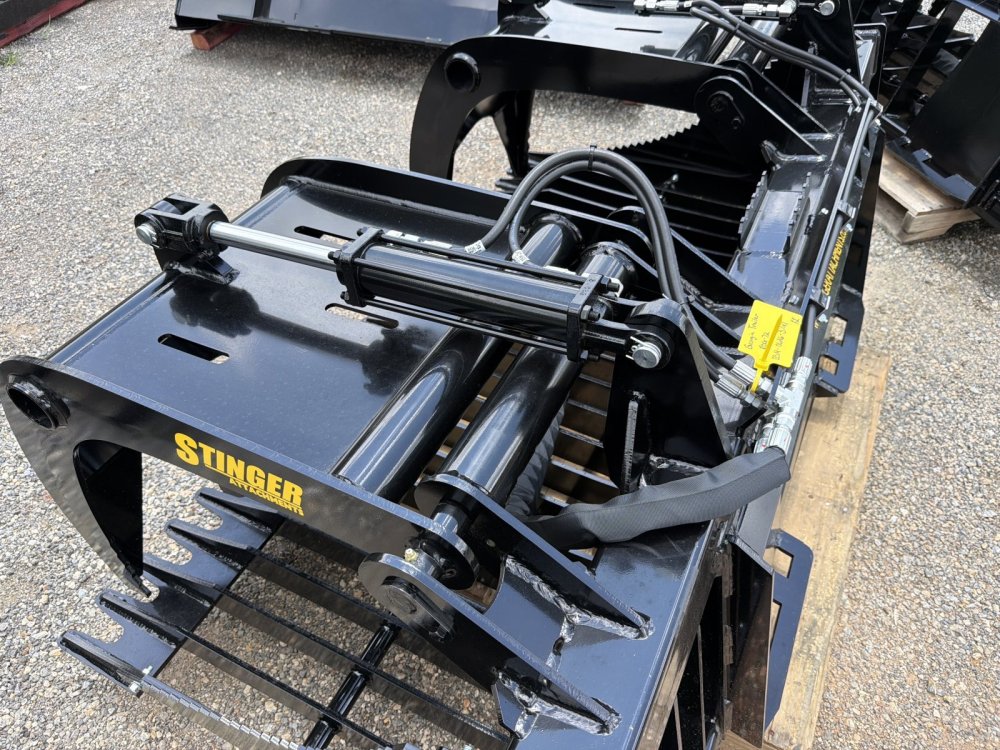

Grapples

Increase your grapple load with a wide 45-inch opening and twin-cylinder grapples that adjust separately.

• 45″ grapple opening
• Twin 2500 psi cylinders
• 1/2″ flat face couplers included
