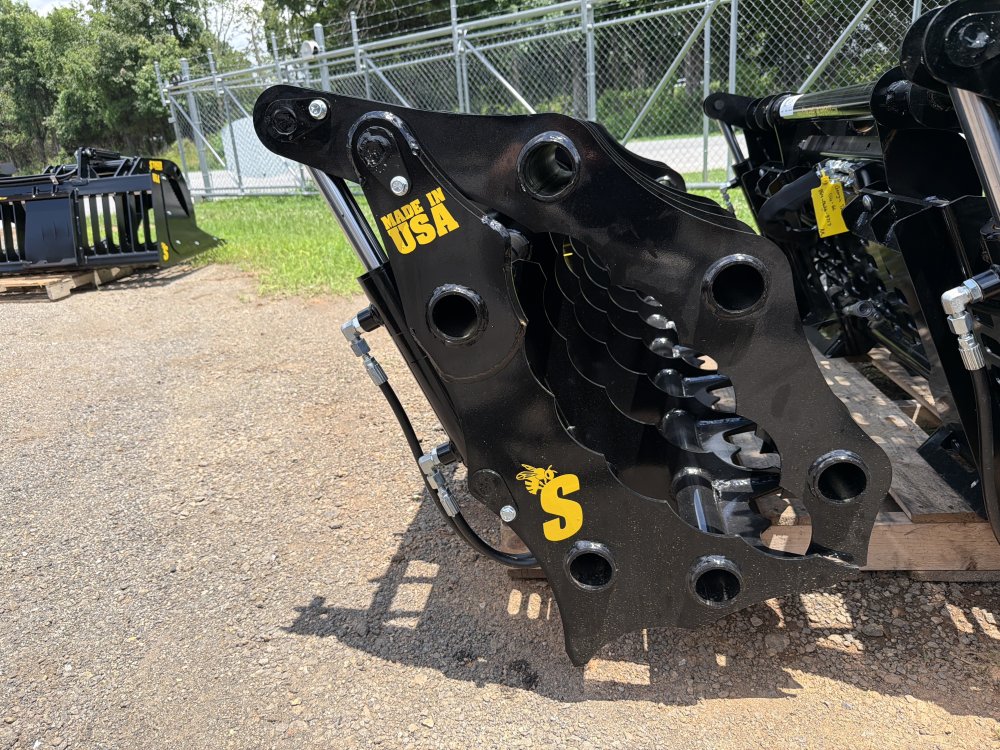

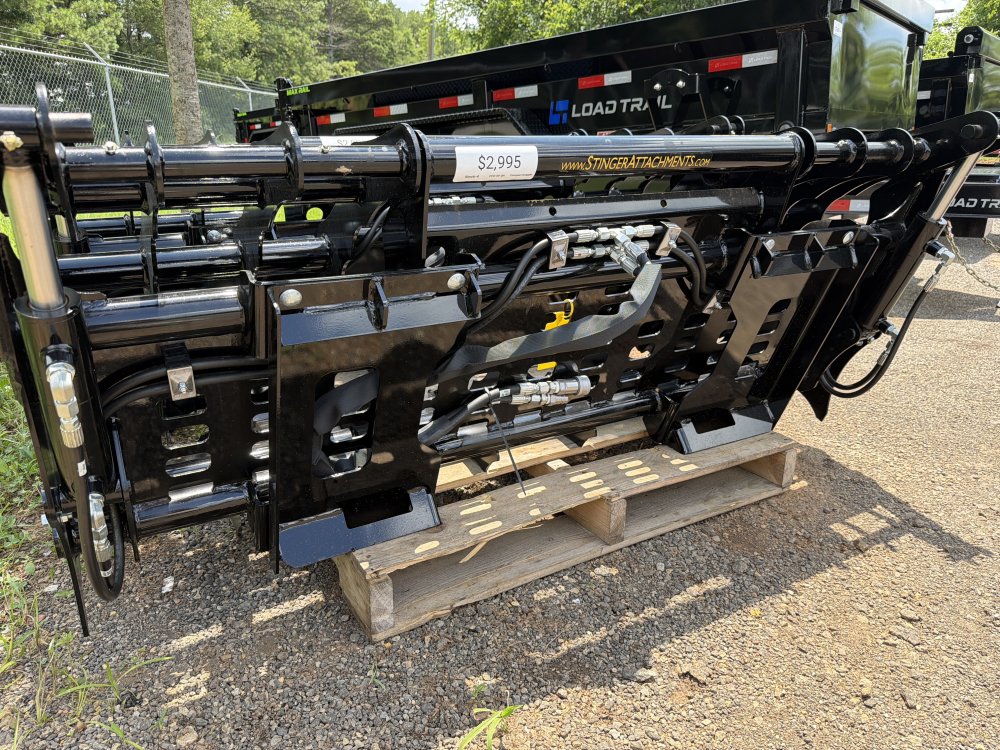

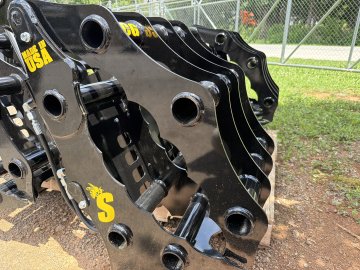

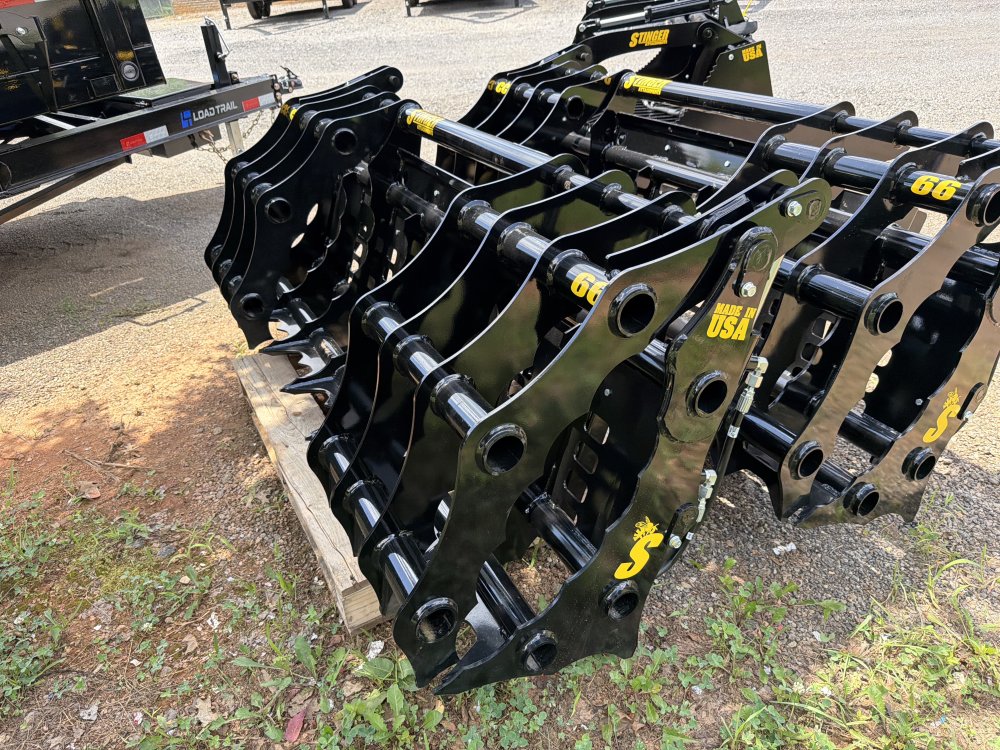

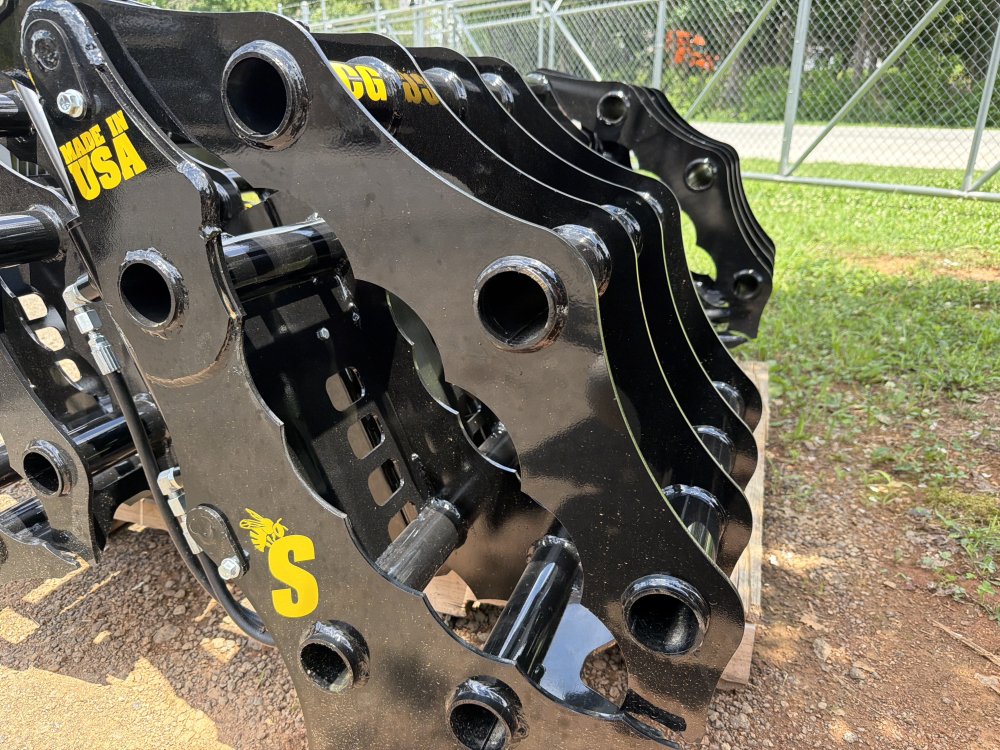

CCG-66 Compact Clam Grapple (Universal Quick Attach Mount)

Specs

• Approx. 360lbs (CCG-56) & 410lbs (CCG-66)
• ¼” AR200 Tine Material
• 1” Greasable Pivot Shaft (Grapple)
• 2” Pipe Size tube Structural Supports

Features

• 2×6 3000PSI Welded Cylinders (Greaseable)
• Multiple Hydraulic Coupler Options
• Enclosed Back- Visibility Cutouts
• Independent Grapples-Secure Uneven Objects
• Approx 35” Grapple Opening
• Mount Plate Options – Secured with (8) Gr8 Bolts
• Approx 9” Opening Between Bucket tines

Features of Our CCG Tractor Grapple Bucket

The Stinger Attachments CCG is the ideal compact tractor grapple because its lightweight AR200 steel construction maximizes lifting power. Independent grapples and protected hydraulics deliver the strength and reliability you need to handle everything from logs to brush.

The Compact Clam Grapple is engineered to the highest standards, with versatile features purpose-built for your line of work, including:

• Abrasion-resistant AR200 steel construction: The lightweight, strong design provides maximum strength while preserving your loader’s lifting capacity.
• 3,000 PSI welded hydraulic cylinders: They deliver powerful, reliable clamping force for a secure grip on any material.
• Greasable pivot points: Easy maintenance access extends component life and ensures smooth operation.
• Bolt-on mount plate: Grade 8 bolts allow easy swap out of grapples between Skid-steer style, John Deere, H120, D120, and 200 to 400 series loaders.
• Independent grapples: Dual functionality enhances stability, maneuverability and secure grip when handling uneven items.
• Enclosed back with visibility cutouts: Clear sightlines let you see what you’re doing, while the enclosed back stops objects from falling through and damaging your tractor.
• 9-inch opening between tines: Objects are grabbed between the grapples and pushed with the bottom tines.
